Radio cables don't get the respect they deserve. Sure, everyone obsesses over transmitters and antennas, but without proper shielding, your signal integrity goes straight into the gutter. I've seen students spend weeks perfecting their radio setups, only to discover that electromagnetic interference (EMI) has turned their pristine transmissions into garbled nonsense. The culprit? Wrong shielding choice.
Shielding isn't some arcane mystery reserved for RF engineers with decades of experience. It's actually pretty straightforward once you understand the trade-offs. Each shielding type brings its own personality to the party, and picking the right one depends on what you're trying to accomplish.
Foil Shielding: The Lightweight Champion
Foil shielding wraps your cable's inner conductor in a thin layer of aluminum or copper foil. Think of it as gift-wrapping your signal in metallic paper. The coverage is essentially complete, which makes it brilliant at blocking high-frequency interference.
I remember working on a university project where we needed cables for a 2.4 GHz communications setup. Foil shielding saved our bacon because it provided near-perfect coverage against the Wi-Fi signals bouncing around the lab. The stuff is also ridiculously lightweight, which matters when you're running dozens of meters of cable.
The downside? Foil tears easier than your professor's patience during finals week. Bend it too many times, and you'll create microscopic ruptures that compromise the shield's effectiveness. Foil-shielded cables also tend to be less flexible, which makes them a pain to route through complex installations.

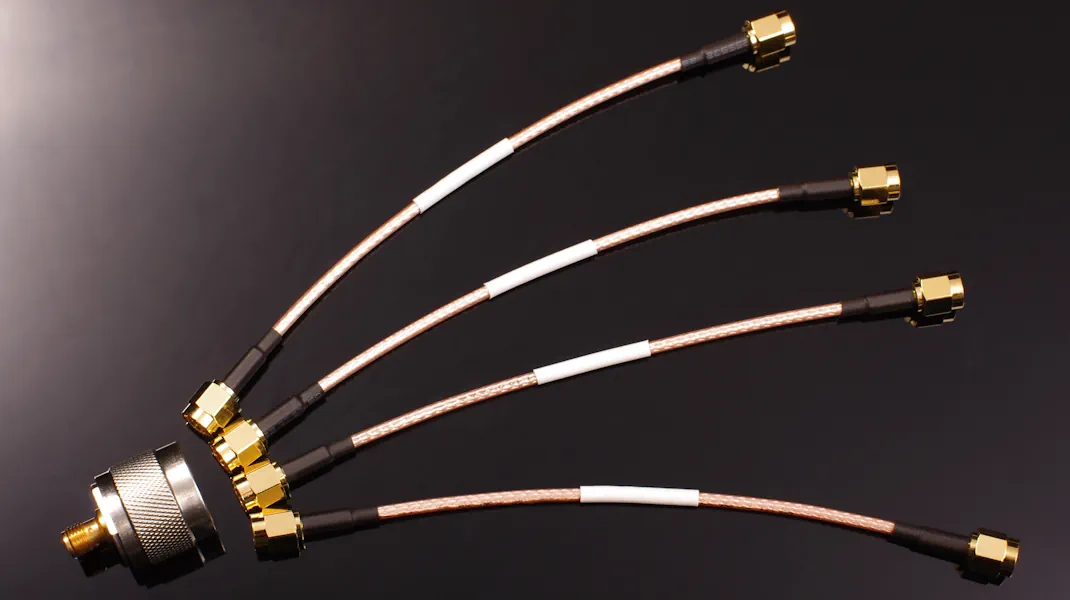

Braid Shielding: The Workhorse
Braid shielding consists of woven copper strands forming a tubular mesh around the inner conductor. It's tougher than foil and handles repeated flexing without falling apart. If you're building a portable radio setup that gets moved around frequently, braid shielding is your friend.
The mechanical strength of braid shielding makes it ideal for field applications. I once watched a classmate accidentally step on a braided cable during a demonstration - the cable survived without any signal degradation. Try that with foil and you're looking at a trip to the electronics supply store.
Braid shielding excels at blocking lower-frequency interference, but it doesn't provide the hermetic seal that foil does. The woven structure leaves tiny gaps - usually around 70-95% coverage depending on the braid density. High-frequency signals can sneak through these gaps, which is why braid alone isn't always sufficient for microwave applications.
Weight is another consideration; braided cables are noticeably heftier than their foil-wrapped cousins. This becomes a real issue when you're working on mobile installations or drone-mounted communication systems.
Combination Shielding: Having Your Cake and Eating It Too
Why choose between foil and braid when you can have both? Combination shielding (often called "tri-shield" or "quad-shield" depending on the layers) wraps the conductor in foil first, then adds a braided layer on top.
This approach isn't just belt-and-suspenders engineering; it's genuinely effective. The foil handles high-frequency interference, while the braid provides mechanical protection and tackles low-frequency EMI. You get excellent coverage across the entire frequency spectrum, plus the durability needed for demanding applications.
Radio astronomy students swear by combination shielding because their receivers need to detect incredibly faint signals. Any interference, be it from AM radio stations, electrical equipment, or even someone's smartphone, can contaminate their observations. The dual-layer approach provides the attenuation necessary to keep unwanted signals at bay.
The trade-off is cost and bulkiness. Combination-shielded cables cost more to manufacture, and they're stiffer than single-shield alternatives. Terminating the connectors also requires more skill because you're dealing with multiple layers.
Spiral Shielding: The Oddball
Spiral (or served) shielding wraps the conductor with a helical layer of metal wires. It's less common than foil or braid, but it has its niche. The spiral configuration provides excellent flexibility, while maintaining decent shielding effectiveness.
I've primarily seen spiral shielding in applications requiring extreme flexibility - think robotic arms or equipment that undergoes constant movement. The spiral can stretch and compress without degrading, which makes it perfect for dynamic environments.
Shielding effectiveness is where spiral falls short. The gaps between the helical wraps allow more interference when compared to foil or tight braid. You wouldn't want spiral shielding for a sensitive receiver application, but it works fine when you need flexibility more than absolute EMI protection.
Matching Shielding to Your Application
Picking the right shielding means understanding your specific requirements. Frequency range matters tremendously. If you're working with HF and VHF signals, braid shielding handles the job admirably. Push into the GHz range and you'll want foil or combination shielding.
Environmental factors deserve serious consideration. Will your cable live in a temperature-controlled lab, or does it need to survive rain, vibration, and the occasional accidental kick? Braid or combination shielding offers better mechanical resilience for harsh conditions.
Flexibility requirements shape your choice too. A permanent installation can tolerate stiffer cables, but portable setups need cables that coil easily and resist fatigue from repeated flexing. This is where braid or spiral shielding shines.
Budget constraints are real. Students working on projects don't have unlimited funds. Foil shielding costs less than braid, which costs less than combination types. Sometimes you need to make compromises, just make sure you're compromising on the right parameters for your application.
Connector compatibility is an often-overlooked gotcha. Some connectors work better with certain shielding types. Terminating combination-shielded cables requires more steps and potentially different tools than terminating simple foil-shielded cables. Read the connector specifications before committing to a cable type.
Real-World Scenarios
Let's get practical. You're setting up a fixed base station for amateur radio in your dorm room. The cables will be routed once and left alone. High-frequency performance matters because you want to work the upper HF bands and maybe experiment with VHF. Foil or combination shielding makes sense here - you don't need extreme flexibility, and you want maximum shielding effectiveness.
Now imagine you're building a portable emergency communications kit. The cables will get coiled, uncoiled, stepped on, shoved in bags, and generally abused. Braid shielding is the smart choice. You sacrifice some high-frequency performance, but the cables will survive real-world treatment.
For a radio astronomy project detecting signals at 1.4 GHz (the famous hydrogen line), combination shielding is practically mandatory. The signals you're trying to detect are incredibly weak, and any interference will swamp your measurements. The extra cost is worth it when your entire project depends on detecting whisper-quiet cosmic signals.
Testing and Troubleshooting
Once you've picked your shielding type and built your setup, you're not done. Testing reveals whether your choice was correct. Use a spectrum analyzer to check for spurious signals and interference. If you're seeing unexpected noise, your shielding might be inadequate or damaged.
Physically inspect your cables regularly. Foil shielding can develop invisible tears that compromise its effectiveness. Braid can fray at the ends if not properly terminated. Catching these issues early prevents mysterious signal problems later.
Ground connections matter just as much as shielding type. A shield that's not properly grounded is about as useful as a screen door on a submarine. Make sure your shield connects to ground at the appropriate points (usually one end only to avoid ground loops, but that's a whole separate discussion).
The Bottom Line
No single shielding type wins in every scenario. Foil gives you lightweight, complete coverage for high frequencies but lacks mechanical robustness. Braid provides durability and flexibility but leaves gaps in the shield. Combination shielding delivers excellent performance across frequencies at the cost of bulk and money. Spiral shielding offers extreme flexibility for specialized applications.
Your job as a radio communication student is to match the shielding to your specific needs. Think about frequency range, environmental conditions, flexibility requirements, budget, and connector compatibility. Make an informed choice rather than just grabbing whatever cable happens to be on sale.
The best engineers I know don't just follow rules - they understand the reasoning behind those rules. Now you understand why different shielding types exist and when to use each one. That knowledge will serve you well whether you're building a simple receiver for class or designing a commercial communication system down the road.
Shielding might not be glamorous, but it's the unsung hero that keeps your signals clean and your receivers happy. Choose wisely, and your radio systems will thank you with clear, interference-free performance.
