Walk into any radio lab and you'll spot them immediately: those tiny metal cylinders that make or break your entire communication setup. Radio connectors aren't glamorous, I'll admit. They don't get the attention that antennas or transceivers receive. But try running a clean signal without the right connector and you'll quickly learn why these unassuming components deserve respect.
I spent three years working at a university radio lab where students would regularly blame their equipment for poor signal quality. Nine times out of ten? Wrong connector choice. The frustration on their faces when I'd swap out a BNC for an N-Type and suddenly their signal cleaned up was priceless. That's the thing about connectors - they're deceptively simple until you get it wrong.
SMA Connectors: The Precision Players
SMA connectors (SubMiniature version A, if you want to get pedantic about it) are the workhorses of modern RF systems. These threaded beauties handle frequencies up to 18 GHz in their standard configuration, and some variants push beyond 26 GHz. The threading gives you a secure connection that won't wiggle loose when you're running tests at 2 AM before a project deadline.
Here's what many students miss: SMA connectors come in regular and reverse polarity versions (RP-SMA). The gender designations get confusing because they're based on the center pin, not the threading. A "male" SMA has external threads but could have either a pin or a socket in the center, depending on whether it's standard or reverse polarity. WiFi equipment manufacturers love RP-SMA connectors, probably to prevent people from attaching high-gain antennas that might violate FCC regulations. That's just my cynical take, though.
The downside? SMA connectors are somewhat delicate. Over-tightening them (a rookie mistake I've witnessed countless times) damages the center pin or the dielectric. They're also smaller than other connector types, which makes them fiddly to work with when your hands are cold or you're working in tight spaces.
BNC Connectors: The Quick-Connect Champions

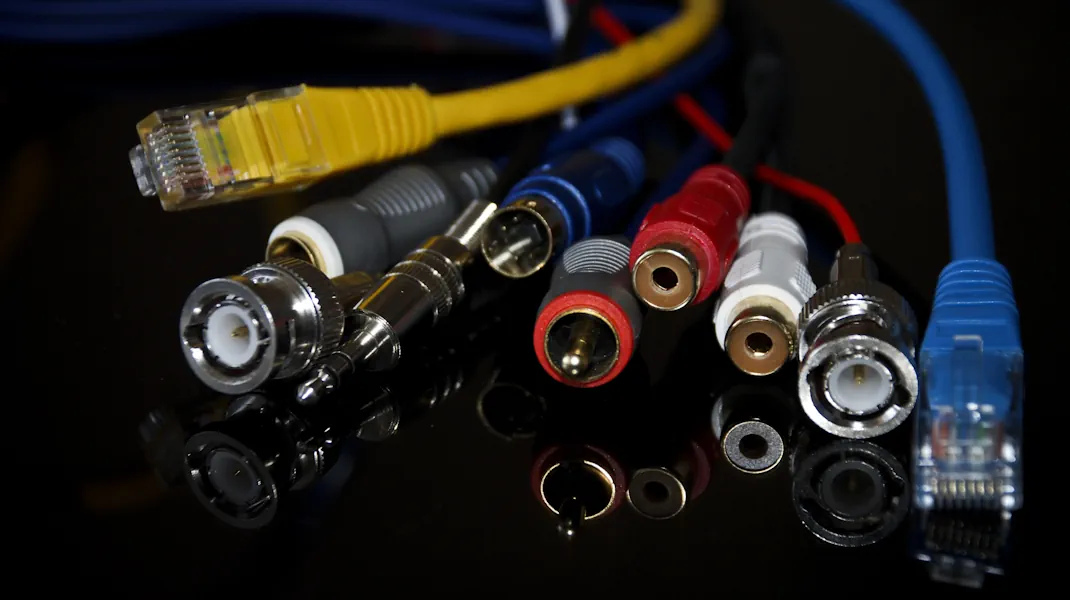

BNC connectors (Bayonet Neill-Concelman, named after their inventors) are everywhere in test equipment and video systems. The bayonet coupling mechanism - you push and twist a quarter turn - makes connections incredibly fast. This matters more than you'd think when you're swapping cables dozens of times during a single lab session.
These connectors handle frequencies up to about 4 GHz reliably, though you'll find them specified for higher frequencies in some datasheets. I'm skeptical of those claims. In my experience, signal integrity starts degrading noticeably above 4 GHz with standard BNC connectors.
The beauty of BNC connectors lies in their ubiquity. Oscilloscopes, function generators, spectrum analyzers - they all use BNC connections. This standardization means you can grab any cable from the drawer and know it'll probably work. The quick-connect mechanism also makes them harder to cross-thread compared to screw-on connectors, which saves equipment from ham-fisted students who think "tighter is better."
But that same quick-connect feature creates problems. BNC connections can vibrate loose in mobile installations or high-vibration environments. I've seen entire demonstrations fail because someone bumped a table and loosened a BNC connection. Not ideal.
N-Type Connectors: The Weather-Resistant Titans
N-Type connectors are the bruisers of the connector world. Named after Paul Neill (yes, the same Neill from BNC connectors - the man clearly had a thing for radio frequency connections), these larger connectors handle higher power levels and maintain performance up to 11 GHz, with precision versions reaching 18 GHz.
The larger size isn't just for show. N-Type connectors maintain their 50-ohm impedance more consistently than smaller connectors, which translates to better VSWR (Voltage Standing Wave Ratio) performance. For outdoor installations - think base station antennas, microwave links, or anything exposed to the elements - N-Type connectors are often the only sensible choice. Their robust construction and weatherproof sealing keep moisture out, which prevents the corrosion that ruins RF performance.
The screw-on coupling provides a secure connection that won't come loose from vibration. I've pulled N-Type connectors off antennas that had been mounted on towers for a decade, and they still looked decent. Try that with a BNC connector - you'll probably need a wrench set.
The drawbacks? Size and weight. N-Type connectors take up space and add bulk to cable assemblies. They're also slower to connect and disconnect than BNC connectors, which becomes tedious during prototyping or testing. And let's be honest: they're overkill for many applications. Using an N-Type connector on a tabletop spectrum analyzer is like driving a dump truck to pick up groceries - it'll work, but it's excessive.
TNC Connectors: The Threaded Alternative
TNC connectors (Threaded Neill-Concelman) take the BNC design and add screw threads instead of the bayonet coupling. This gives you the vibration resistance of a threaded connection, while maintaining the same basic form factor and frequency range as BNC connectors.
They're popular in military and aerospace applications where vibration is a concern but you don't need the full bulk of an N-Type connector. I've also seen them on GPS equipment and some cellular infrastructure. The threaded coupling prevents accidental disconnections, which matters when your equipment is mounted in a vehicle bouncing down rough roads.
The learning curve is minimal if you already know BNC connectors. Same size, same frequency range (up to about 11 GHz), just a different coupling mechanism.
F Connectors: The Cable TV Standard
F connectors dominate cable television and satellite installations. These screw-on connectors are cheap to manufacture and easy to install, which explains their popularity in consumer applications. The center conductor of the coaxial cable itself serves as the connector's center pin - an elegant solution that reduces parts count and cost.
For radio communication students, F connectors represent an interesting case study in cost-versus-performance tradeoffs. They're adequate for the frequencies used in cable TV and satellite systems (up to about 3 GHz), but their performance pales compared to properly engineered RF connectors. The impedance matching isn't great, and the mechanical connection relies on threads cutting into soft aluminum or brass. Still, for low-cost consumer applications, they're hard to beat.
MMCX and MCX Connectors: Miniature Marvels
MMCX (Micro-Miniature Coaxial) and MCX (Miniature Coaxial) connectors are tiny snap-on connectors used when space is at a premium. GPS modules, cellular modems, and other compact RF devices use these connectors. MCX connectors handle frequencies up to 6 GHz, while MMCX connectors go higher, up to 10 GHz or more.
The snap-on coupling makes connections quick, but these connectors have limited mating cycle lifespans compared to their larger cousins. They're designed for semi-permanent installations rather than frequent connections and disconnections. Breaking one by connecting and disconnecting it repeatedly during testing is embarrassingly easy - trust me on this one.
Making the Right Choice
Selecting the right connector involves balancing several factors: operating frequency, power handling requirements, environmental conditions, physical space constraints, and cost. A connector that's perfect for a benchtop prototype might fail miserably in an outdoor installation.
For lab work and prototyping below 4 GHz, BNC connectors offer the best combination of convenience and performance. When you need to go higher in frequency or deal with outdoor installations, N-Type connectors become the logical choice despite their bulk. SMA connectors occupy the middle ground - higher frequency capability than BNC, smaller size than N-Type, but more delicate than either.
The military specification sheets (MIL-STD-348 for various connector types, if you're curious) provide detailed performance parameters, but real-world experience teaches you things the spec sheets don't mention. Like how some cheap SMA connectors have center pins that bend if you look at them wrong. Or how BNC connectors from certain manufacturers have bayonet lugs that wear out after a few dozen mating cycles.
Pay attention to the impedance rating. Most RF connectors come in 50-ohm and 75-ohm variants. Mixing impedances creates reflections and degrades signal quality. Video systems typically use 75-ohm connectors, while radio communication systems standardize on 50 ohms. Using the wrong impedance won't prevent a connection, but it'll definitely mess up your measurements.
The Unglamorous Truth
Connectors aren't exciting. Nobody dreams of becoming a connector expert when they first get into radio communications. But understanding these components separates competent radio engineers from mediocre ones. The best transmitter in the world won't perform if you're losing half your signal in a poorly chosen or improperly installed connector.
Next time you're setting up a radio system and something doesn't work right, check your connectors before blaming the equipment. Clean the contacts, verify you're using the right type, make sure the coupling is secure. It's not glamorous troubleshooting, but it solves more problems than you'd expect.
Radio communication is about getting signals from point A to point B reliably. Connectors are the unsung heroes making that happen. Give them the respect they deserve, choose the right one for your application, and your signals will thank you.
