You know what trips up most radio communication students? It's not the complex modulation schemes or the arcane regulations. It's impedance. That seemingly mundane electrical property lurking inside every cable you'll touch in your career.
I've watched too many bright students gloss over this topic, thinking it's just another box to tick before moving on to "cooler" subjects. Big mistake. Impedance is the difference between a system that sings and one that whimpers pathetically into the ether.
The Impedance Reality Check
Impedance measures opposition to alternating current flow. Unlike simple resistance, which only cares about steady DC, impedance accounts for both resistance and reactance. Reactance is the opposition created by capacitors and inductors when AC signals pass through them.
You measure impedance in ohms, just like resistance. But here's where things get interesting: impedance changes based on frequency. A cable that behaves beautifully at 1 MHz might turn into an absolute nightmare at 1 GHz. Radio frequencies are capricious beasts, and impedance is their leash.
Why Your Cable Isn't Just a Wire
Radio cables have characteristic impedance determined by their physical construction. The spacing between conductors, the dielectric material separating them, the thickness of the shield - all these factors conspire to create a specific impedance value.
Most radio cables you'll encounter come in two flavors: 50 and 75 ohm. The 50-ohm variety dominates RF transmission systems, amateur radio setups, and measurement equipment. The 75-ohm cables reign supreme in video distribution and cable television. There's actual physics behind this split, involving power handling versus signal loss optimization, but that's a rabbit hole for another day.
When I first started tinkering with radio gear, I assumed cables were interchangeable. Slap any coax between your transmitter and antenna, right? Wrong. Dead wrong. My first ham radio setup performed worse than a tin can telephone because I'd grabbed whatever cable was cheapest at the electronics shop.
The Matching Game Nobody Told You About
Here's the kicker: every component in your radio system has an impedance. Your transmitter output? 50 ohms. Your antenna feedpoint? Hopefully 50 ohms. Your cable? Better be 50 ohms.
When these impedances don't match, bad things happen. RF energy reflects back toward the source instead of radiating into space. These reflections create standing waves - patterns of voltage and current that bounce back and forth along your transmission line like an angry tennis match.
We quantify this disaster using Voltage Standing Wave Ratio, or VSWR. A perfect match gives you a VSWR of 1:1. Real-world systems rarely achieve perfection; anything below 1.5:1 is generally acceptable for most applications. Above 2:1? You're hemorrhaging power and risking damage to your transmitter.
I once helped a friend troubleshoot his CB radio setup. He couldn't figure out why his range was terrible and his radio ran scorching hot. One VSWR measurement revealed a catastrophic 5:1 ratio. The culprit? He'd connected a 75-ohm TV antenna cable between his 50-ohm radio and 50-ohm antenna. Sometimes the simplest mistakes cause the biggest headaches.
The Hidden Costs of Mismatch
Power loss from impedance mismatch isn't just theoretical. At a 2:1 VSWR, you're losing roughly 11% of your transmitted power. That might not sound egregious, but consider this: doubling your effective radiated power requires multiplying your transmitter power by four. Losing 11% right off the bat means you need significantly more amplifier muscle to compensate.
Signal distortion is another nasty consequence. When impedance varies along your transmission path, different frequency components experience different amounts of reflection. This frequency-dependent behavior mangles complex signals, degrading your received audio quality or data integrity. Digital modes are particularly susceptible to this kind of abuse.
Measuring What Matters
You can't manage what you don't measure. Time Domain Reflectometry (TDR) instruments send fast pulses down your cable and analyze the reflections. These gadgets pinpoint exactly where impedance discontinuities occur - invaluable for locating damaged cable sections or poorly installed connectors.

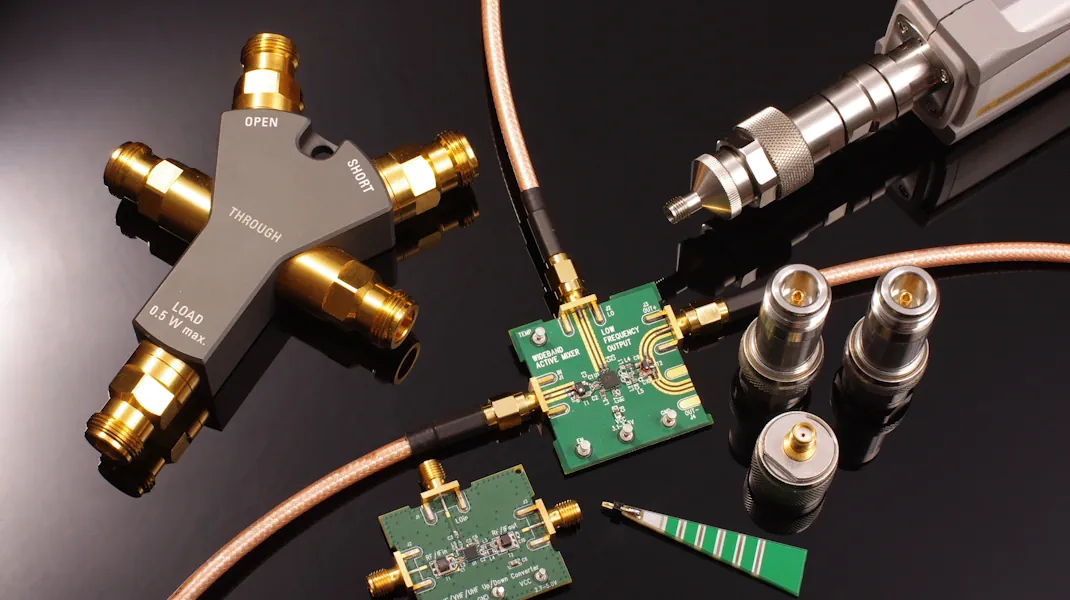

Network analyzers offer comprehensive impedance characterization across wide frequency ranges. Modern vector network analyzers have become surprisingly affordable, putting professional-grade measurements within reach of serious hobbyists. I've seen compact VNAs that cost less than a decent smartphone yet provide measurements that would've required an equipment rack worth thousands just a decade ago.
For quick field checks, SWR meters remain indispensable. These simple devices insert between your transmitter and antenna, displaying VSWR in real time. Every radio station should have one.
Picking Your Poison
Selecting cable based on impedance seems straightforward until you factor in frequency, power handling, and loss characteristics. RG-58 and RG-8X are popular 50-ohm choices for HF and VHF work, but their high loss at UHF frequencies makes them poor selections for 70cm and higher bands.
LMR-400 and similar low-loss cables cost more but preserve precious RF energy over longer runs. At microwave frequencies, even premium coax becomes lossy, and waveguide or hardline becomes necessary.
Always verify the impedance specification before purchasing cable. Some manufacturers play fast and loose with standards, producing "50-ohm" cable that actually measures 48 or 52 ohms. Close enough might work for non-critical applications, but precision work demands precision components.
When Things Go Sideways
Suspect impedance problems when your transmitter power output drops, VSWR suddenly increases, or receive sensitivity deteriorates. Connector corrosion is a frequent villain - that beautiful PL-259 connector can develop resistance that throws impedance out of whack.
Water infiltration into coax creates impedance chaos. The dielectric constant changes, shifting characteristic impedance and creating reflections. I learned this lesson during a rainy field day operation when our VHF station performance degraded mysteriously. A tiny crack in the antenna connector jacket had allowed moisture inside the cable. We replaced the entire feedline and sealed every connection with quality weatherproofing tape.
Sharp cable bends or crushing damage also destroys impedance consistency, so treat your coax with respect. Don't kink it, don't drive over it with equipment carts, and don't use it as a rope for hoisting antennas (yes, I've seen this atrocity committed).
The Bottom Line
Impedance might seem like tedious theory, but it's the foundation of every functional radio system. Ignore it at your peril. Match it properly and you'll extract maximum performance from your equipment.
Your professors might drone on about Smith charts and complex conjugate matching - and yes, that math matters for advanced design work. But start with the basics: use the correct impedance cable, install connectors properly, and verify your VSWR before cranking up the power.
Radio communication is unforgiving. It doesn't care about your intentions or how expensive your gear was. Physics dictates the rules, and impedance is one of its fundamental laws. Master this concept and you'll troubleshoot problems faster, design better systems, and actually understand what's happening inside your transmission lines.
That's not glamorous knowledge. It won't impress anyone at parties. But it separates radio operators who know their craft from those who just push buttons and hope for the best.
